#717A-DC – Cabinet Door Clamp

Our Most Popular Door Clamp Design – Higher Quality Doors at a Faster Production Pace

Clamp and Square 100+ Stile & Rail Doors Per Day

Features:

  • 26″ x 62″ Maximum capacity.
  • Minimum 9″ Clamping Capacity
  • (2) Second Squaring of Stile and Rail Cabinet Doors.
  • Precise and Accurate Squaring Guaranteed
  • MDF and HDF Door Models Available!!
  • Includes (2) Vertical Clamps & (1) Horizontal Clamp.
  • Easy to use, Single Lever Operation.
  • Fast Changeovers
  • 15 Degree Working Angle

Enhanced Features from the Tried & True #79K Design:

  • Clamping force centered on your stiles and rails — where you need it most.

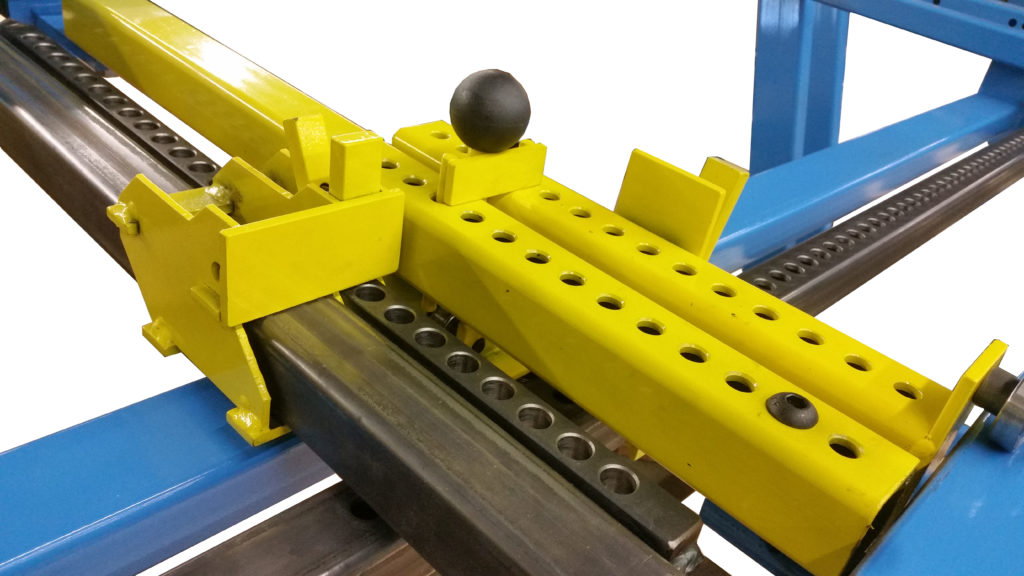

  • Intuitive Pin System allows even Quicker and Easier setup than ever before.
  • Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.

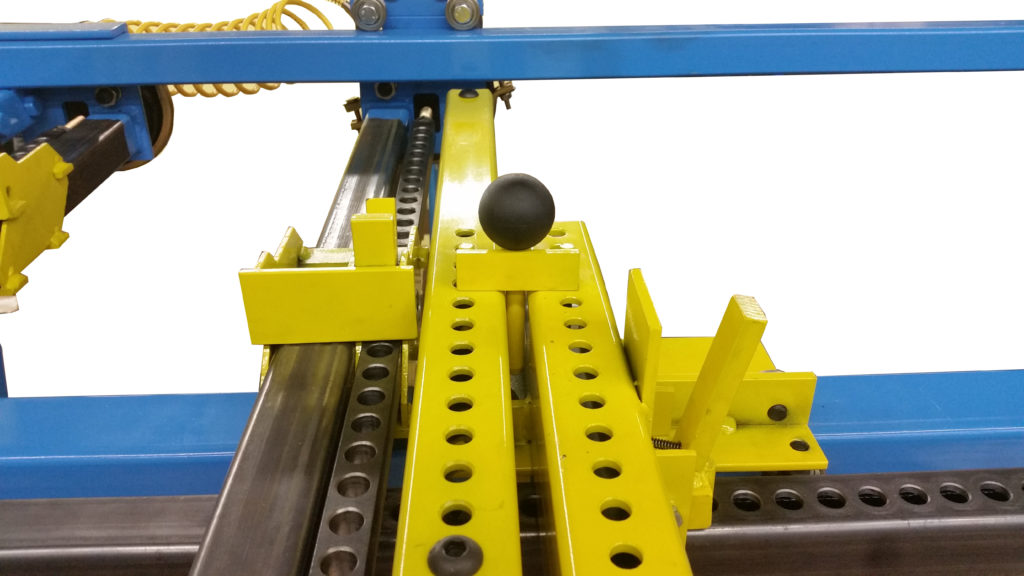

  • Redesigned Jaws with Thumb Plate for Increased Efficiency.
  • Thicker Push Bars Decrease Daily Wear and Tear.



Machine Footprint: 86″L x 50″H x 36″W

Full description

JLT Clamps introduces The Narrow Stile Door Clamp. A redesign of our classic JLT Door Clamp, now with new and improved features. An intuitive pin system allows for easy changeovers, while the new design allows for precise clamping and squaring of narrow stile doors and drawer fronts.

Features:

  • 26″ x 62″ Maximum capacity.
  • Minimum 9″ Clamping Capacity
  • (2) Second Squaring of Stile and Rail Cabinet Doors.
  • Precise and Accurate Squaring Guaranteed
  • Includes (2) Vertical Clamps & (1) Horizontal Clamp.
  • Easy to use, Single Lever Operation.
  • Fast Changeovers
  • 15 Degree Working Angle
