#79F-12-PC – 12′ Panel Clamp

JLT’s Best Value – Our Most Versatile & Productive Panel Clamp Model

PRODUCE up to 72 Edge Glued Panels per Day

Features:

  • (5) total gluing levels
  • Includes (30) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available on Request)

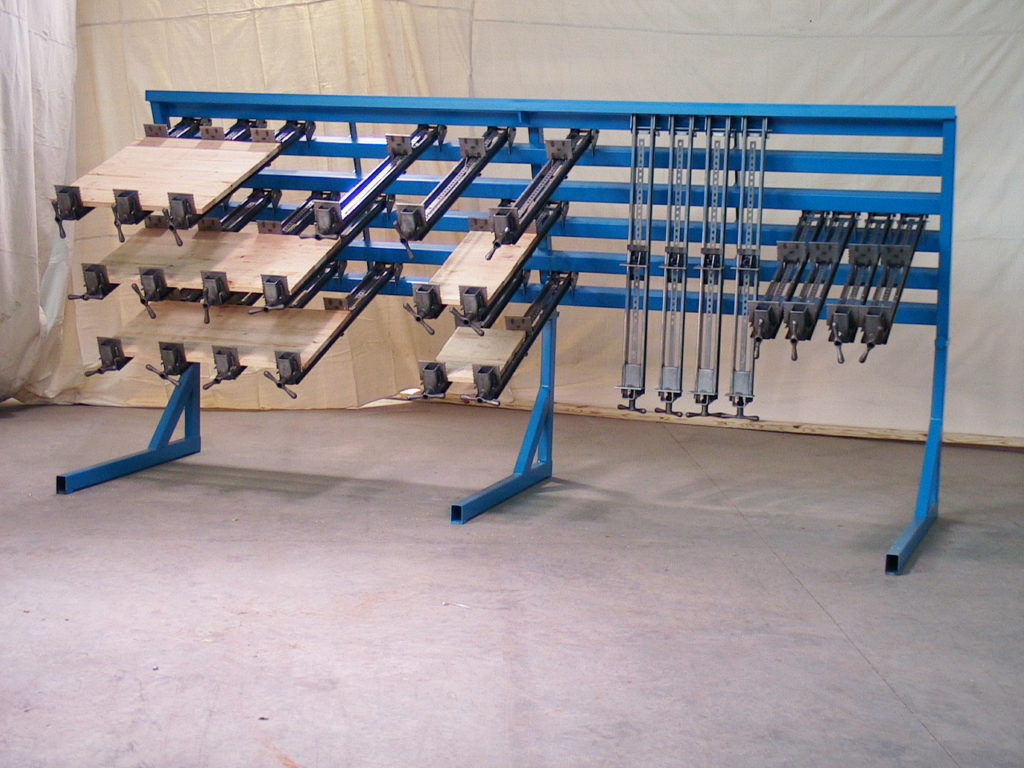

  • Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use
  • Taylor’s Patented and Successful Clamp Arm Design
  • Versatility to Edge Glue Hundreds of Woodworking Components
  • 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels
  • Accessories: #302-40-H-R Clamps, 138B, 150B Glue Spreaders, 180A, 79-16 Hold Downs, 80-1706 Rocker Plates



Machine Footprint: 148″L x 70″H x 48″W

(Additional Features and Details Below)

Additional Features & Details
  • High Production clamping system for the Medium Size Shop.
  • BEST VALUE – Our Most Popular Panel Clamp Model
  • Edge Glue and Face Glue a variety of solid wood components
    • Produce 72+ edge glued panels per day with a Standard Setup
    • Face Glue, Utilizing our Rocker Plates, a Wide Variety of Railing Stock, Posts, Beams, Flooring Blanks, and more
  • Includes (30) 3 1/2″ High jaw 40″ Clamps
    • Optional 52″ Clamps Available on Request
  • Free Standing Unit with 3000 lbs. Weight Capacity
  • 100% Complete Tubular Steel Construction
  • Put (2) 12′ Panel Clamps side by side for edge gluing up to 24′ long Products
  • Complete 3 Year Warranty
  • Accessories: #302-40-H-R Clamps, 138B 8″ x 48″ Taylor Plate Spreader, 150B Glue Spreader, 180A Pneumatic Panel Flattener, 79-16 Holddowns, 80-1706 Rocker Plates
JLT #302 Clamp Details

  • Standard Stock Size of 40″ Maximum Opening
    • Additional Stock Size is 52″ Maximum Opening
    • Additional non-stock and Custom Sizes from 32″ – 120″ Opening
    • Minimum Clamp Opening of 9″
  • Robotically Welded / 100% Steel Construction
    • Lifetime Warranty on all Welded Components
    • Guaranteed never to Twist, Bow or Bend under normal working conditions
  • Each Clamp can Produce up to 3000 lbs of Clamping Force
  • Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
    • Higher Quality Panels result from this Design with more even Glue Line Pressure
