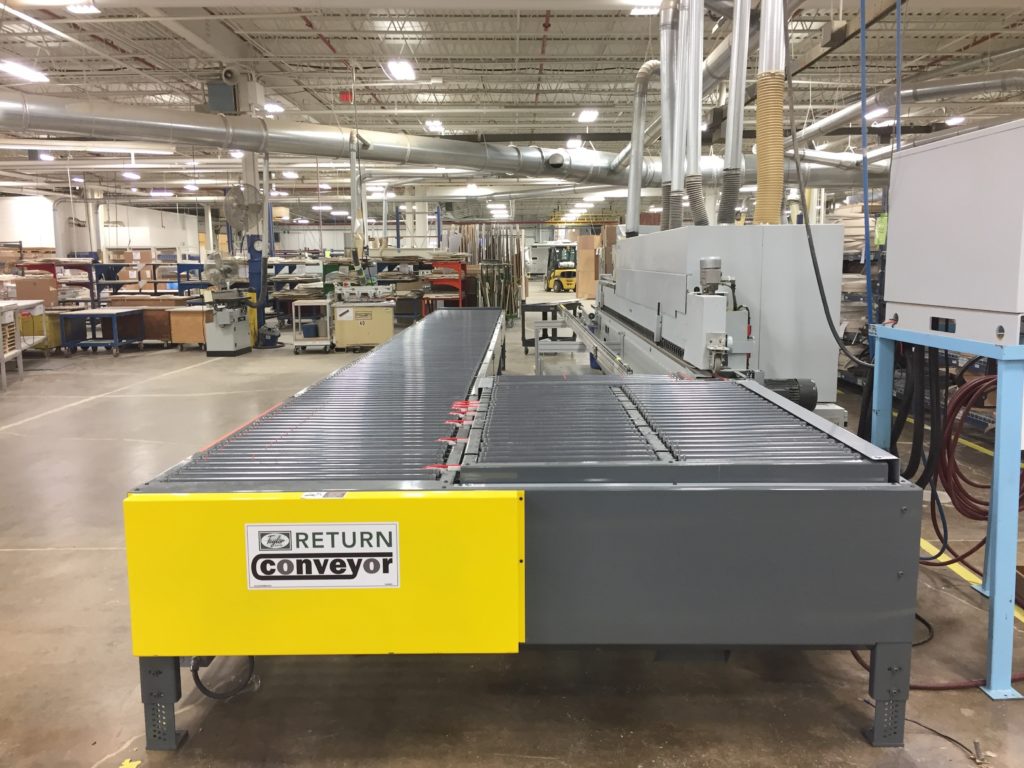

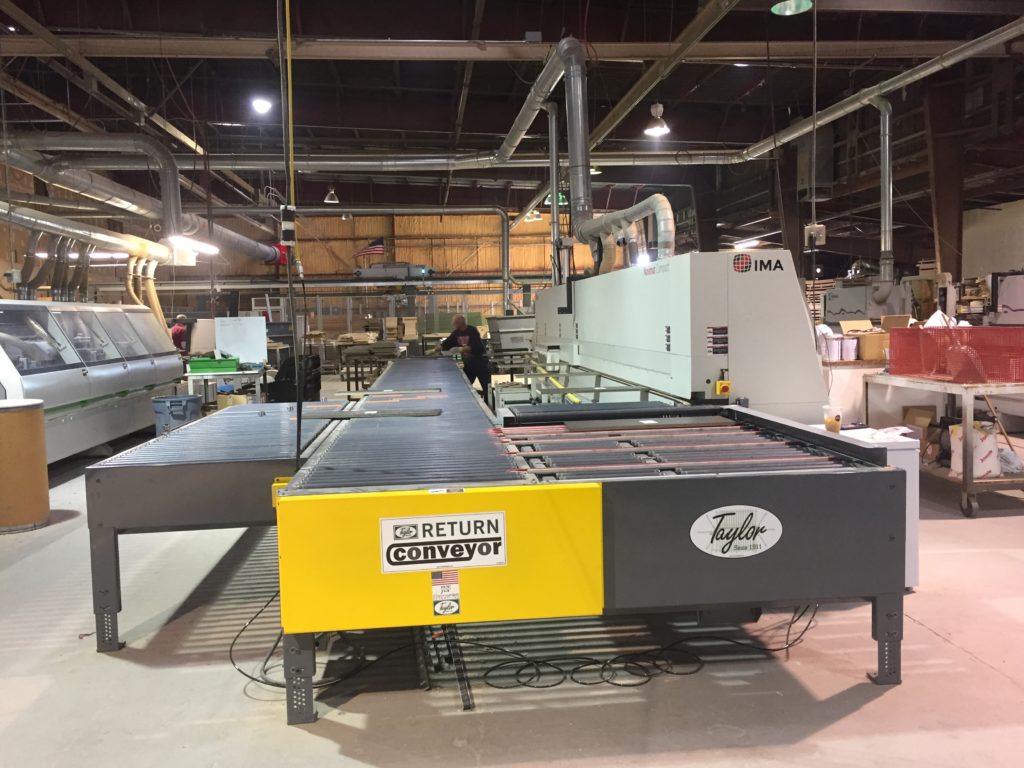

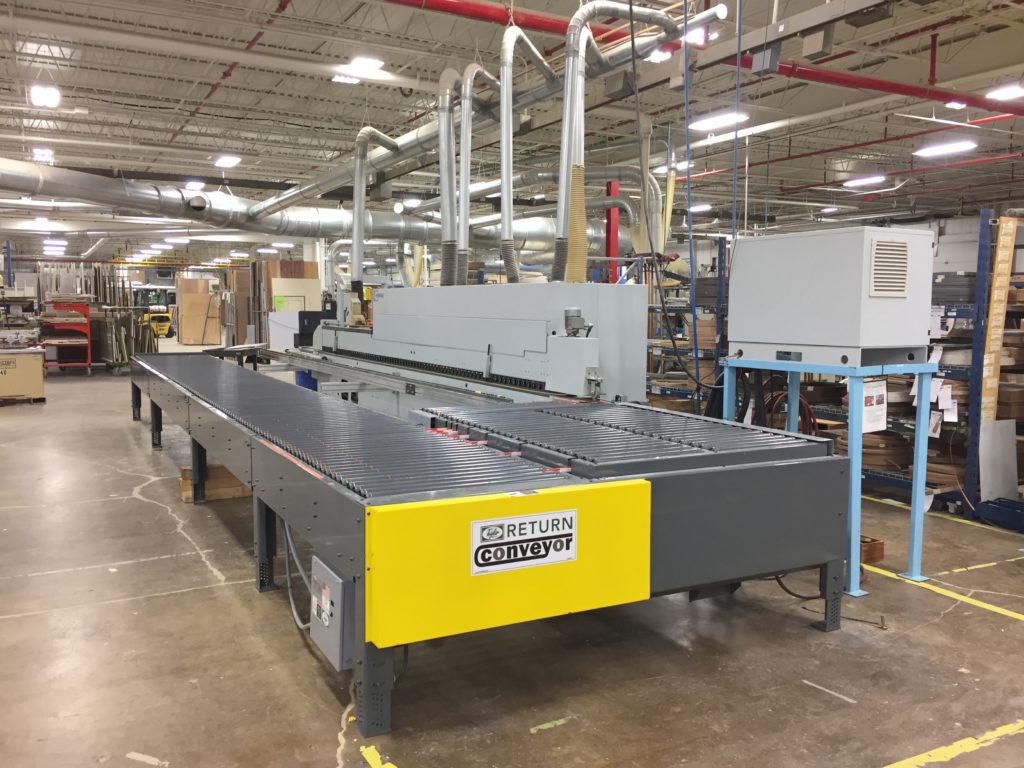

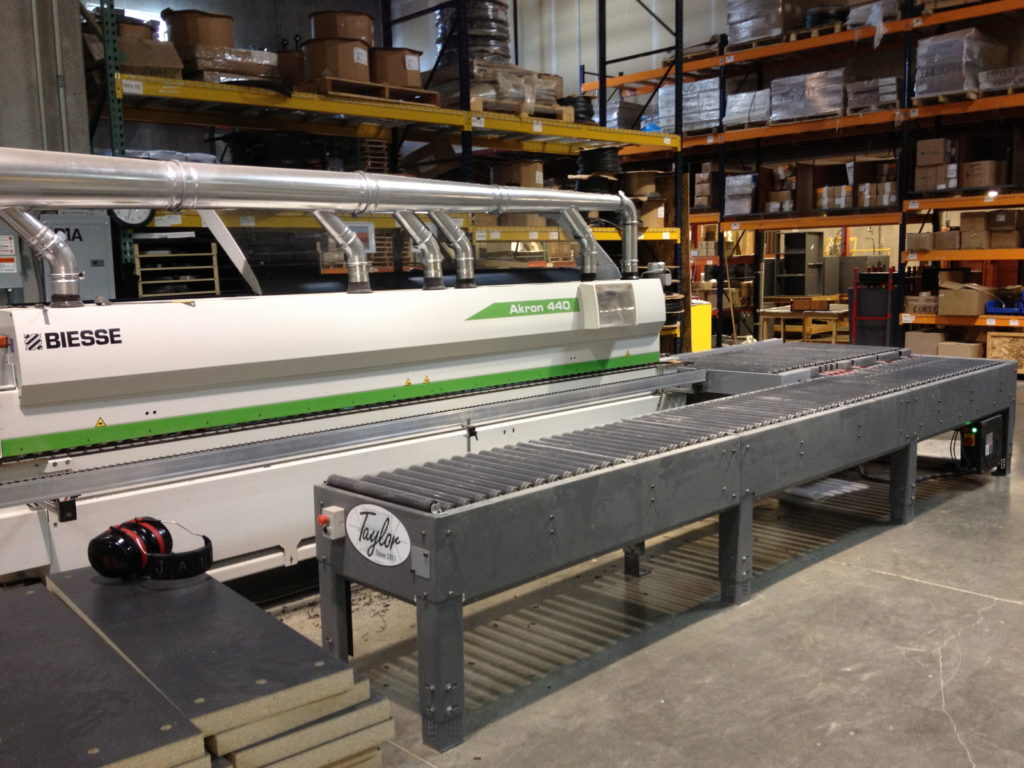

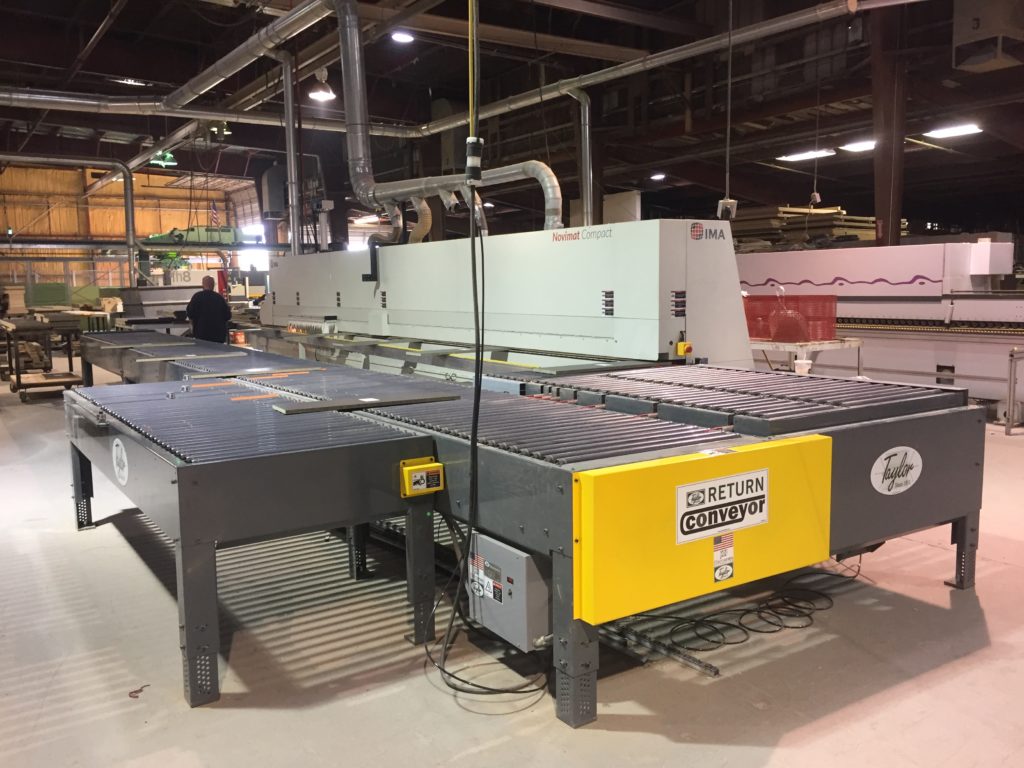

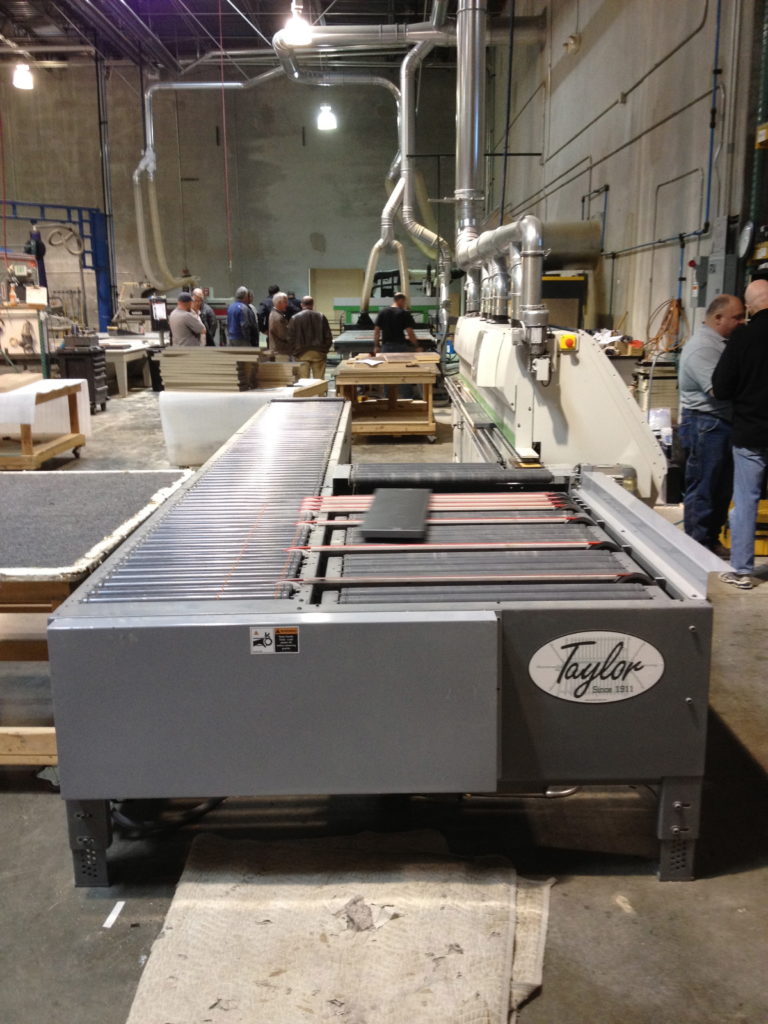

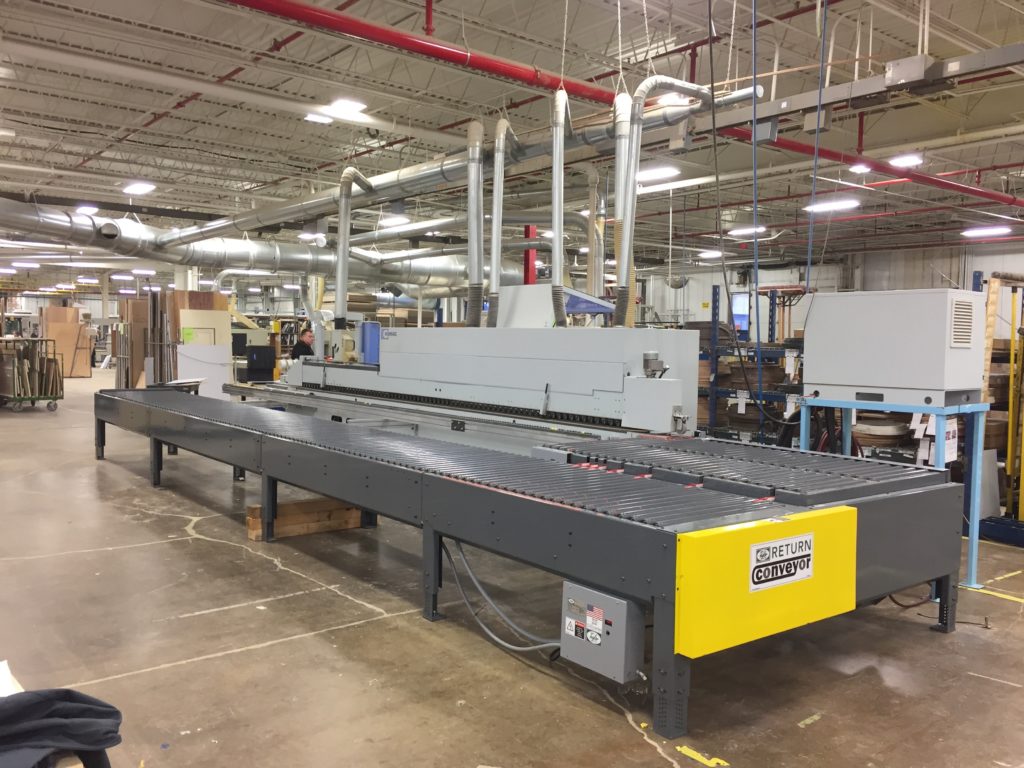

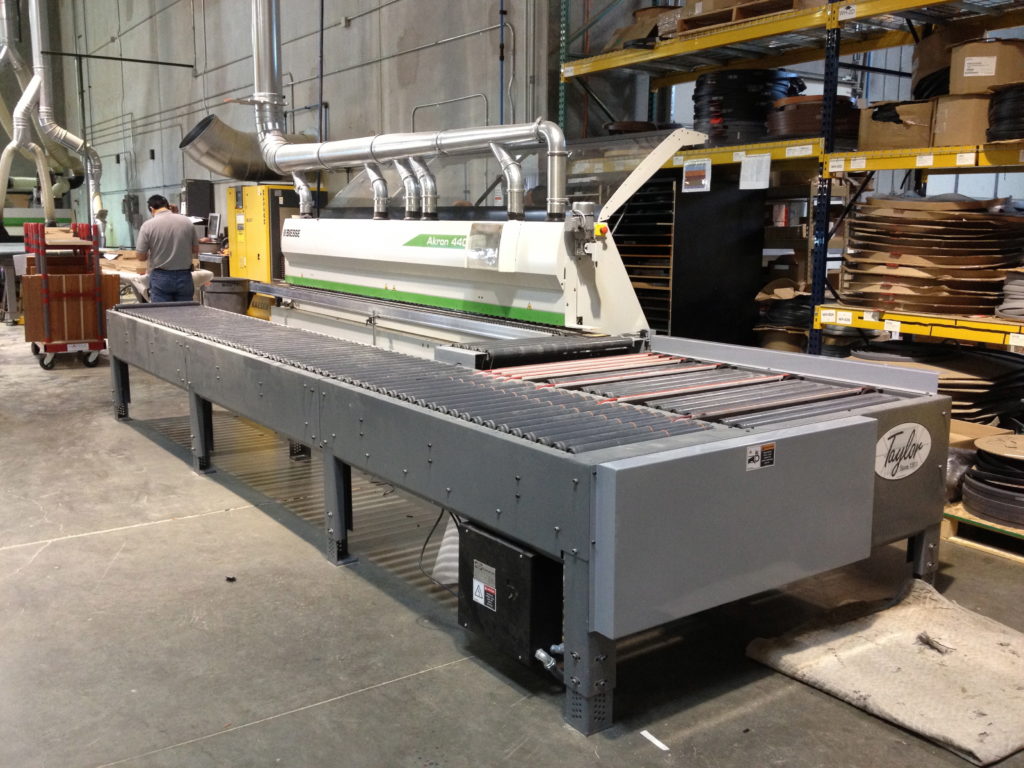

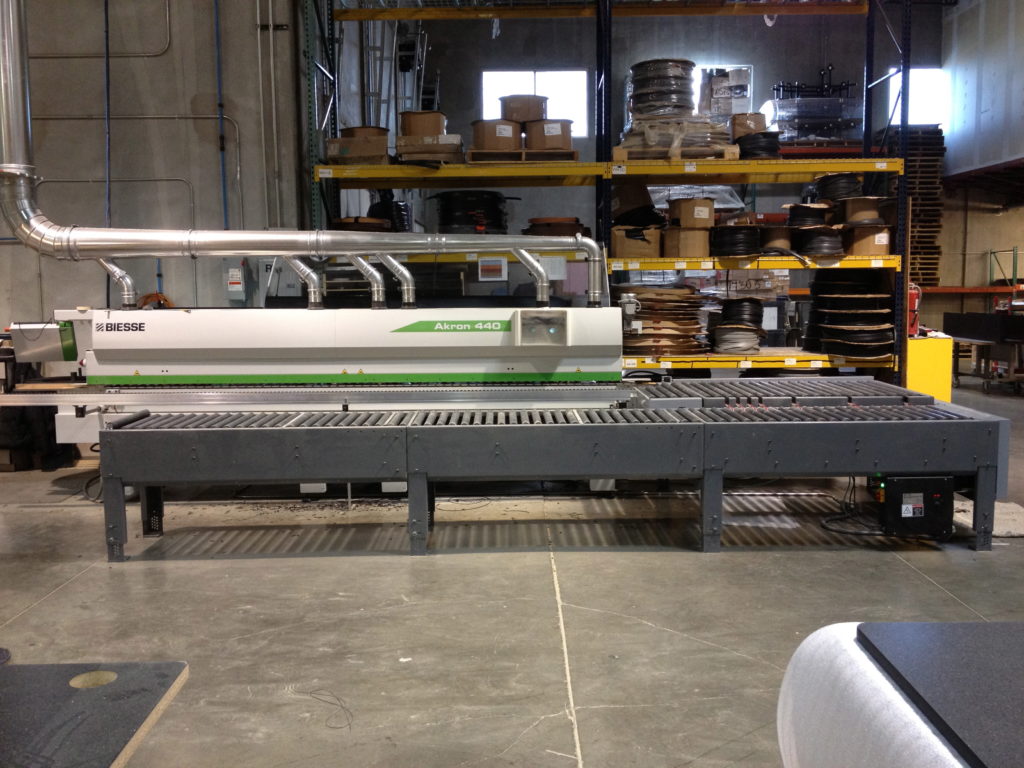

#910A- Taylor Return Conveyor for Edge Banders

The edge bander model comes in multiple widths and lengths. The outfeed return can be customized to return components to any location near the edge bander infeed

Features:

(4) machine lengths return material up to 60″, 96″, 112″ long, or 132″ Long
Heavy duty frame and component construction for long life(Heavier than the competition)
Drop away receiving conveyor gently transfers parts to cross conveyor
- Photo-eye triggers drop of receiving conveyor. A PLC adjusts the timing automatically based on conveyor speed.
24″ or 36″ Rollers on return conveyors can handle up to 36″ or 50″ wide material.
- Optional 48″ Catch Rollers
- (Can be paired with a Powered Panel Turner for end banding longer panels up to 90″)
- Minimum material size 1″ x 6″
- Roller Spacing 3″ center to center
- All rollers are powered and individually clutched for long belt life.
Any Length Return (in one foot increments, measured from tail end of shaper/sander) composed of modular sections.
- Return is 2 1/2″ lower than receiving conveyor, allowing for over/under return.
Variable Speed AC drive matches conveyor feed rate to edge bander feed rate.
Adjustable Height to match passline height of the Edgebander

The edge bander model comes in multiple widths and lengths. The outfeed return can be customized to return components to any location near the edge bander infeed. Numerous options are available for special applications.

Request a quote Call me

Return on Investment: With our competitive pricing, the payback period is very fast. The cost of a new machine is typically less than one year’s wages.
Quality and Innovation: Taylor’s 110+ years in business and our four Challenger Awards assures a U.S.-made machine high on quality and long on innovation
Fast Delivery and Easy Setup: All machines are built in our Upstate New York factory in eight weeks or less. Every machine is fully assembled here and ships 80-90% assembled. You will be up and running in hours
Sales and Support: Because we design, build, test and ship at one facility, we understand the needs of the customer. Year in and year out, we are regarded as one of the best sales support companies in the woodworking industry

When you buy a Taylor Return Conveyor, you buy more than a machine, you buy into a company that partners with you to make your company productive. Cameron Automation is a division of James L. Taylor which has served the woodworking industry for over 100 years. In that time, we have developed and maintained a level of customer service and products that are second to none.

Our machines are American made. From where Terry unloads raw steel from trucks to where Monty packs a completed machine for shipping, it’s all done here in the US. We maintain a large inventory of parts ready for next day delivery. We support our customers with an available and knowledgeable service staff. Our service is second to none. Just ask any of our thousands of satisfied customers

Base Model	A	B	C	D	E
#38A-24C-24R-5L Model 24” Wide Receiving Rollers and 24” Wide Return Rollers Returns Panels up to 36” Wide and 60” Long	60″	62″	24″	64″	Any
#38A-36C-36R-5L Model 36” Wide Receiving Rollers and 36” Wide Return Rollers Returns Panels up to 50” Wide and 60” Long	84″	62″	36″	112″	Any
#38A-36C-36R-7L Model 36” Wide Receiving Rollers and 36” Wide Return Rollers Returns Panels up to 50” Wide and 84” Long	84″	74″	36″	112″	Any
#38A-36C-36R-8L Model 36” Wide Receiving Rollers and 36” Wide Return Rollers Returns Panels up to 50” Wide and 96” Long	84″	86″	36″	112″	Any

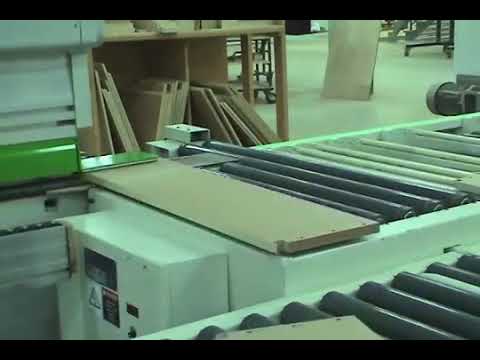

Components exit your edgebander, sander, or rip saw
Our catch is equipped with powered rollers which feed the component completely onto the catch section
A sensor is used to activate cylinder and lower the catch and place the component onto traverse belts
Traverse belts carry the component sideways onto the return section
The return is equipped with powered rollers to start the component back to the operator
The return extension carries the component back to the infeed end

The panel turner increases the length of the parts that are able to be end banded from 50″ to 90″. Once the parts leave the catch area, they extend out onto the panel turner, where a series of posts, with roller bearings, use the momentum of the parts to turn them 90 degrees. This change in orientation allows the parts to fit on the return extension and can be transferred back down to the operator at the infeed of the edgebander.
