#128K- Taylor Glue Pump

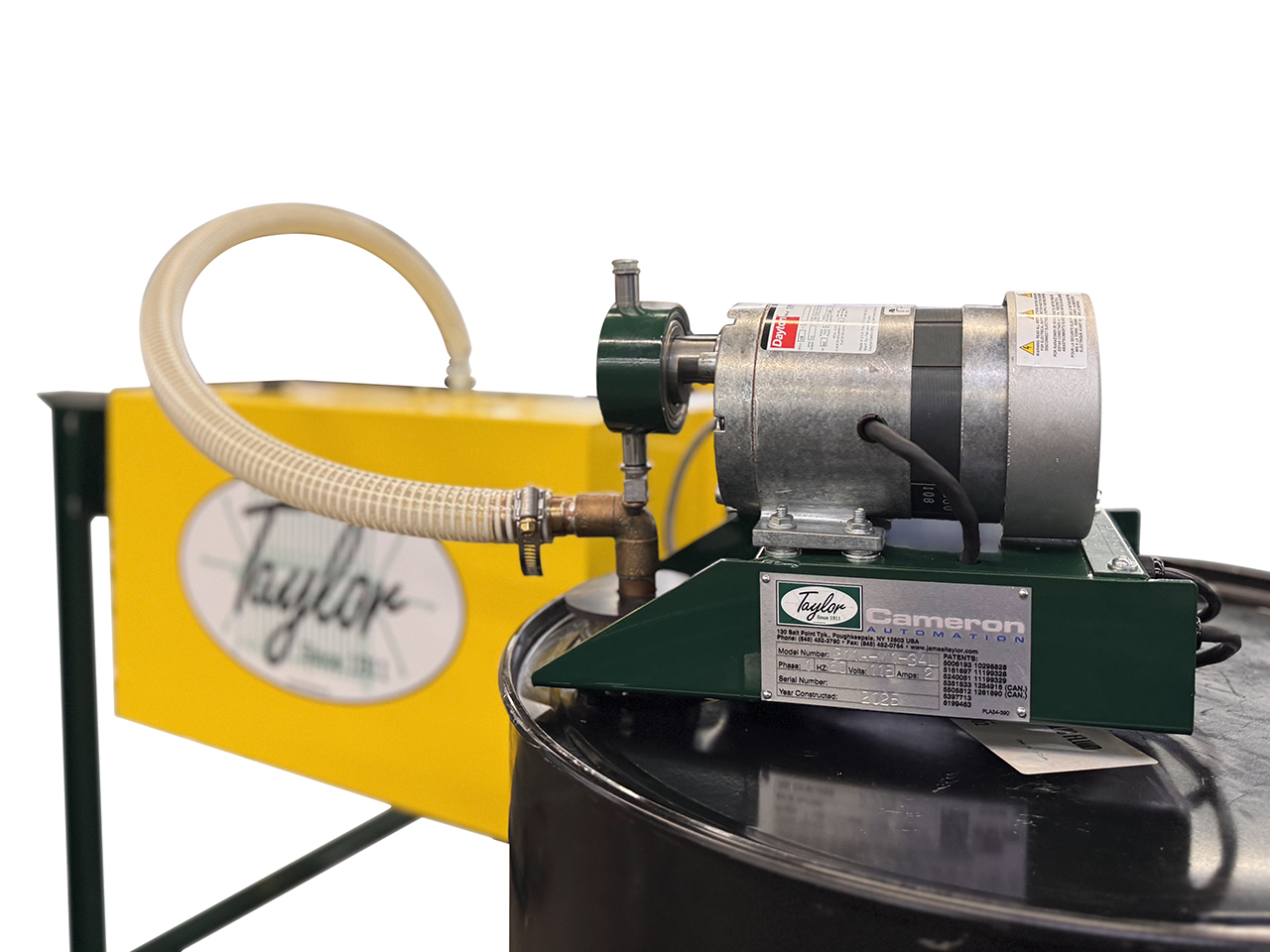

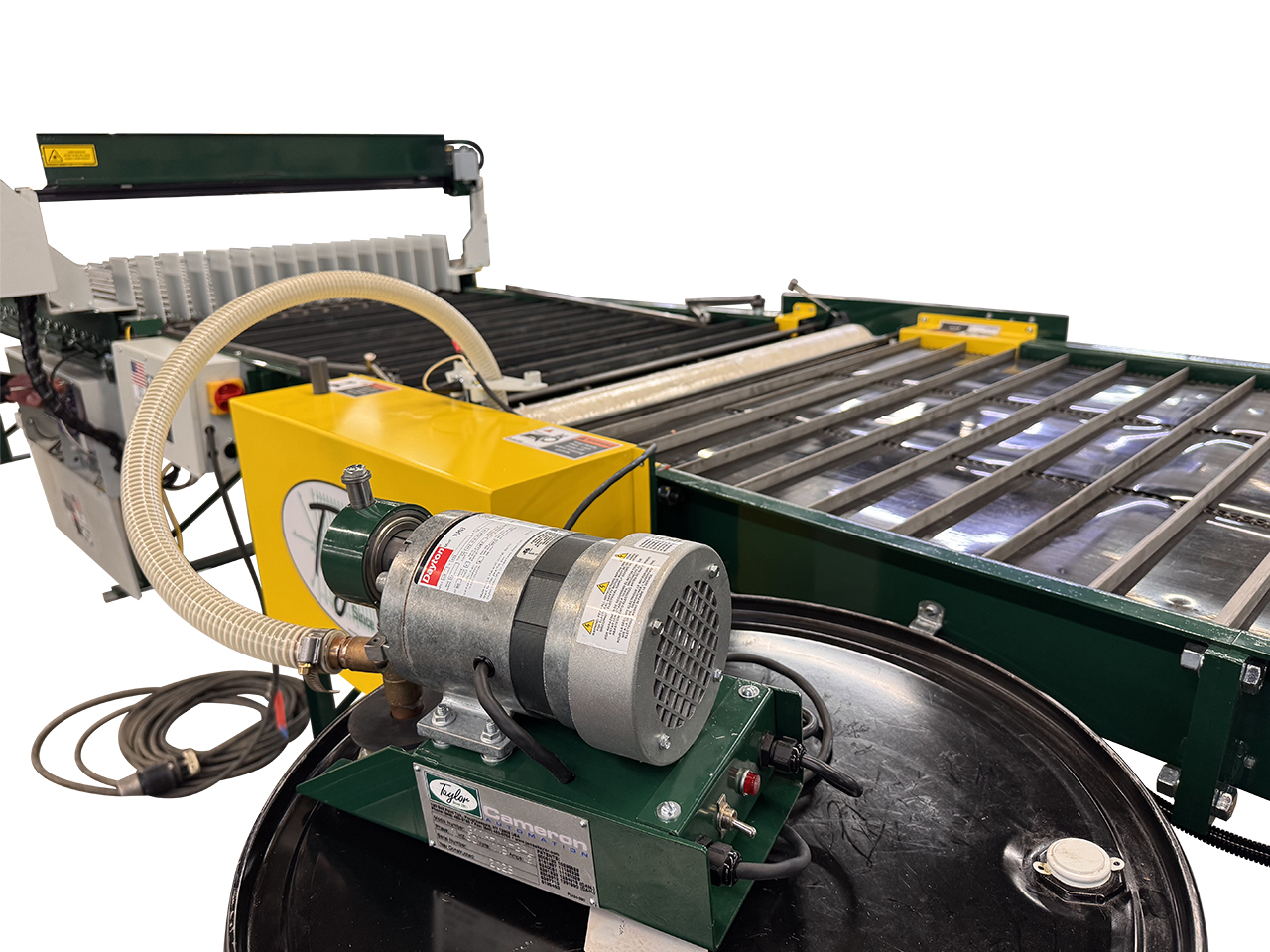

The Taylor PVA Glue Pump transfers glue directly from a 55 gallon drum on the floor to the Taylor Conveyorized Glue Applicator or the Taylor Plate Spreader.

The Taylor PVA Glue Pump transfers glue directly from a 55 gallon drum on the floor to the Taylor Conveyorized Glue Applicator or the Taylor Plate Spreader. It can be used with all polyvinyl and aliphatic adhesives.

Equipped with an electronic sensing circuit, the pump turns on and off automatically to maintain the optimum glue level in the glue pan. The PVA Pump incorporates a unique hollow piston design and a force limiting system, ensuring reliable performance even when using cold or thick glues.

Request a quote Call me

The Ultimate #128K- Taylor Glue Pump for Woodworkers

The Taylor PVA Glue Pump transfers glue directly from a 55 gallon drum on the floor to the Taylor Conveyorized Glue Applicator or the Taylor Plate Spreader.

#128K- Taylor Glue Pump
#128K- Taylor Glue Pump

Engineered for Precision & Speed

The Taylor PVA Glue Pump transfers glue directly from a 55 gallon drum on the floor to the Taylor Conveyorized Glue Applicator or the Taylor Plate Spreader.

Boost Your Throughput

Compact and powerful, the #128K- Taylor Glue Pump maximizes workspace efficiency.

#128K- Taylor Glue Pump
Industry-leading reliability
Industry-leading reliability

Leverage industry-leading reliability to streamline your workflow.

Unmatched durability
Unmatched durability

Bring unmatched durability to your bench for flawless quality.

Power:
120 V(AC)
2 Amps

Metering Switch:

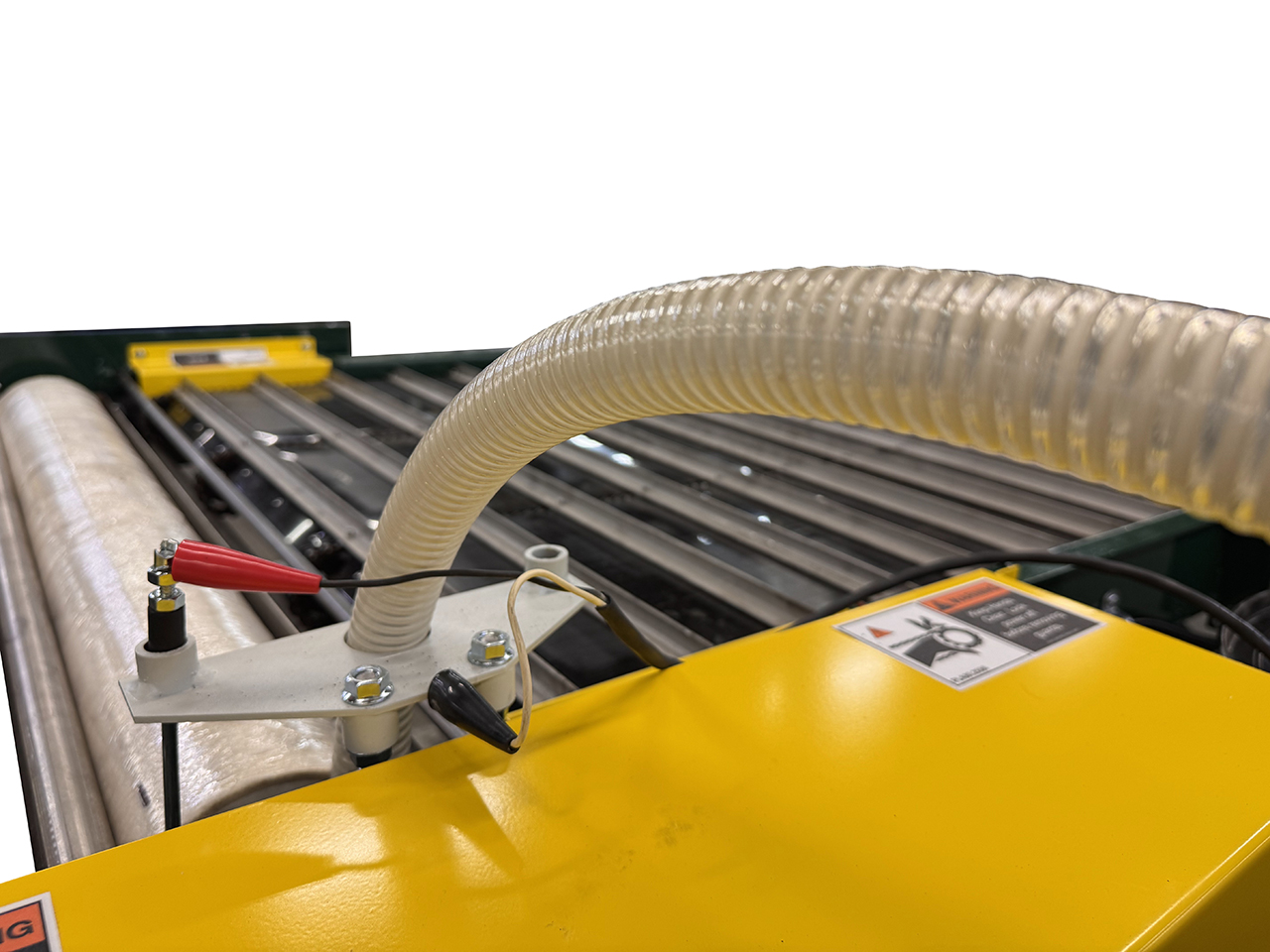

Conductive through “level probe” and glue.

Pumping Capacity:
6 Gallons Per Hour (standard speed – High Speed available)

Works with:
PVA Glue

Dimensions:
2″ Copper Cylinder Tube (2.041″ ID — 2.125″ OD)
34″ Standard Height from top of bung hole to bottom of Cylinder (custom height available)
