#78H- Mini Pod Press

Face Glue A variety of Solid Wood Components up to 12”Wide Space Saving Design, Easy to Use and Precise Straight Line Clamping

Features & Specs:

  • Material Capacities:
    • 12″ Wide x 42″ Long
    • 12″ Wide x 84″ Long
    • 12″ Wide x 126″ Long
  • Adjustable Opening: 0″ – 40″ of Stackable Depth
  • Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
    • Maximum Pressure: 10 Tons Per 3-1/2′ Section @ 110 psi
  • Versatile Easy to use Operation for a Variety of Material Sizes
    • Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’
  • Dial Regulators for Fine and Consistent Control of Clamping Pressure
    • Longer Machines have Multiple Dials for even more Control
  • Pyramid Different Size Glue Ups
  • Modular Design

Machine Footprint (10′ Long Model): 128”L x 36”W x 76”H

Request a quote Call me

The Ultimate #78H- Mini Pod Press for Woodworkers

Face Glue A variety of Solid Wood Components up to 12”Wide Space Saving Design, Easy to Use and Precise Straight Line Clamping

  • Material Capacities: 12″ Wide x 42″ Long
  • 12″ Wide x 84″ Long
  • 12″ Wide x 126″ Long
#78H- Mini Pod Press
#78H- Mini Pod Press

Engineered for Precision & Speed

Face Glue A variety of Solid Wood Components up to 12”Wide Space Saving Design, Easy to Use and Precise Straight Line Clamping

  • Material Capacities: 12″ Wide x 42″ Long
  • 12″ Wide x 84″ Long
  • 12″ Wide x 126″ Long

Boost Your Throughput

Compact and powerful, the #78H- Mini Pod Press maximizes workspace efficiency.

#78H- Mini Pod Press
Material Capacities: 12″ Wide x 42″ Long
Material Capacities: 12″ Wide x 42″ Long

Leverage material capacities: 12′ wide x 42′ long to streamline your workflow.

12″ Wide x 84″ Long
12″ Wide x 84″ Long

Bring 12′ wide x 84′ long to your bench for flawless quality.

12″ Wide x 126″ Long
12″ Wide x 126″ Long

Harness 12′ wide x 126′ long for faster cycle times.

Adjustable Opening: 0″ – 40″ of Stackable Depth
Adjustable Opening: 0″ – 40″ of Stackable Depth

Take advantage of adjustable opening: 0′ – 40′ of stackable depth for superior output.

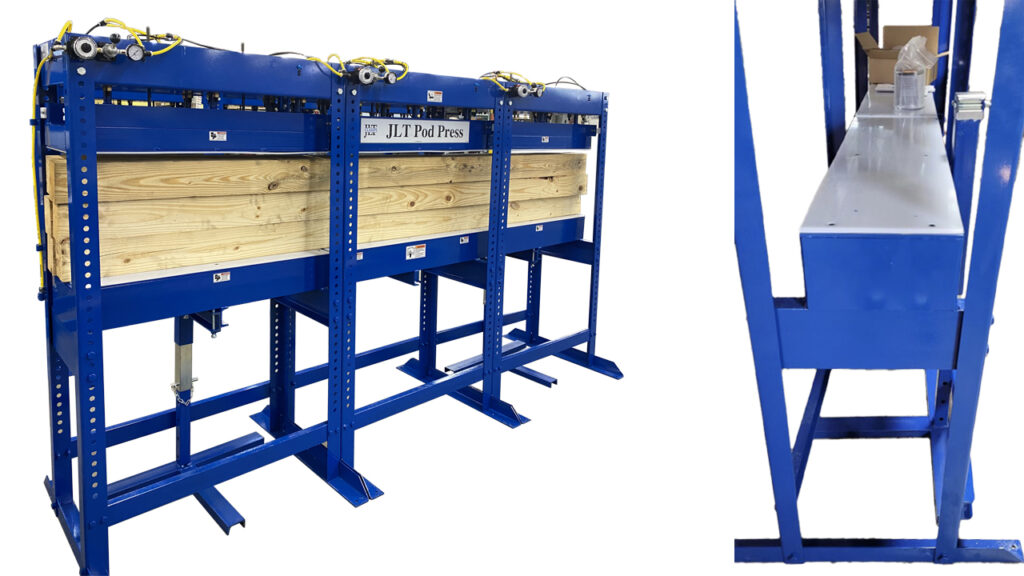

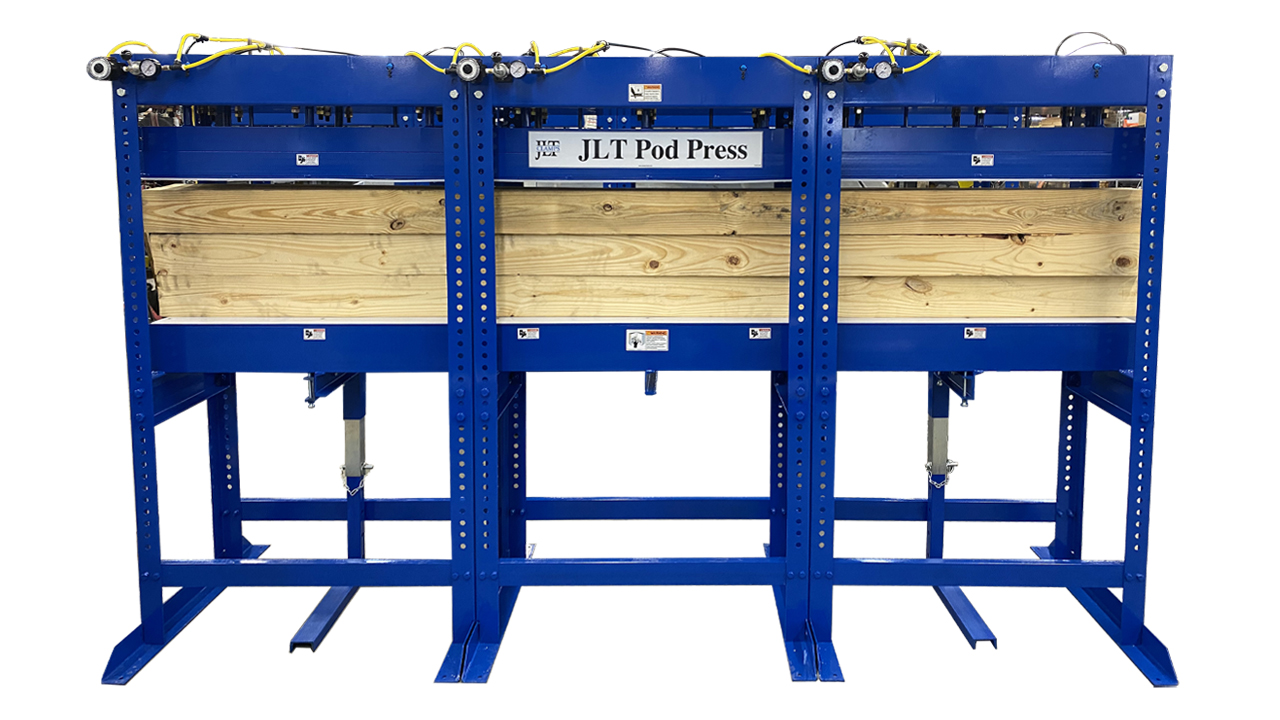

The Mini Pod Press is a low cost high pressure cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1 1/2″ increments to a maximum opening of 40″. The work area is 12″ wide and machines are currently offered in lengths of 3-1/2′, 7′ or 10-1/2′.

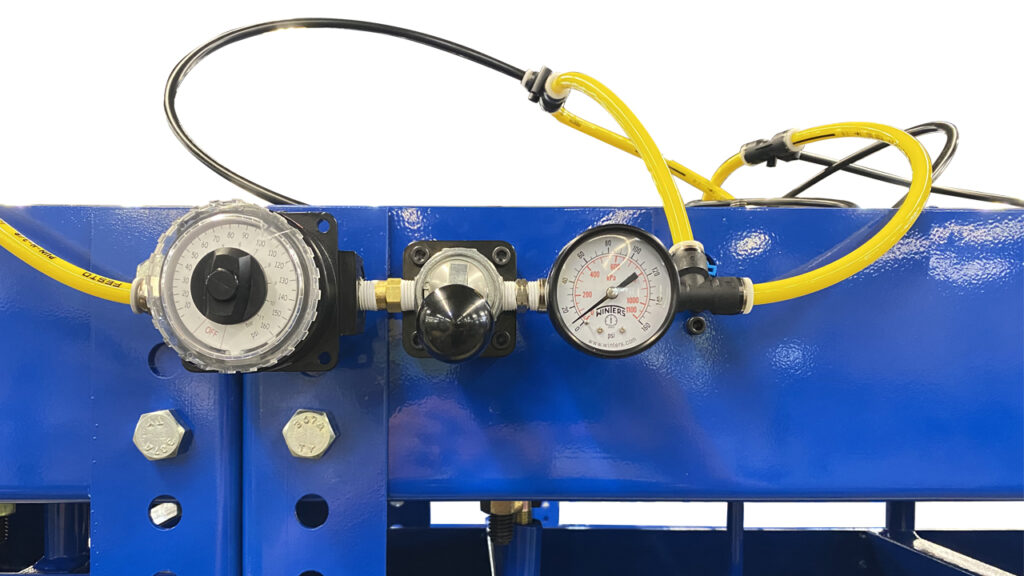

Air pressure and alignment are carefully controlled via dial regulators on each individual platen

  • Versatile Easy to use Operation for a Variety of Material Sizes
  • Vertical Press Offers 40’’ Maximum Capacity
  • Stack Multiple Wood Components up to 12”Wide
    • Pyramid Different Size Glue Ups to Increase Production
    • Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’

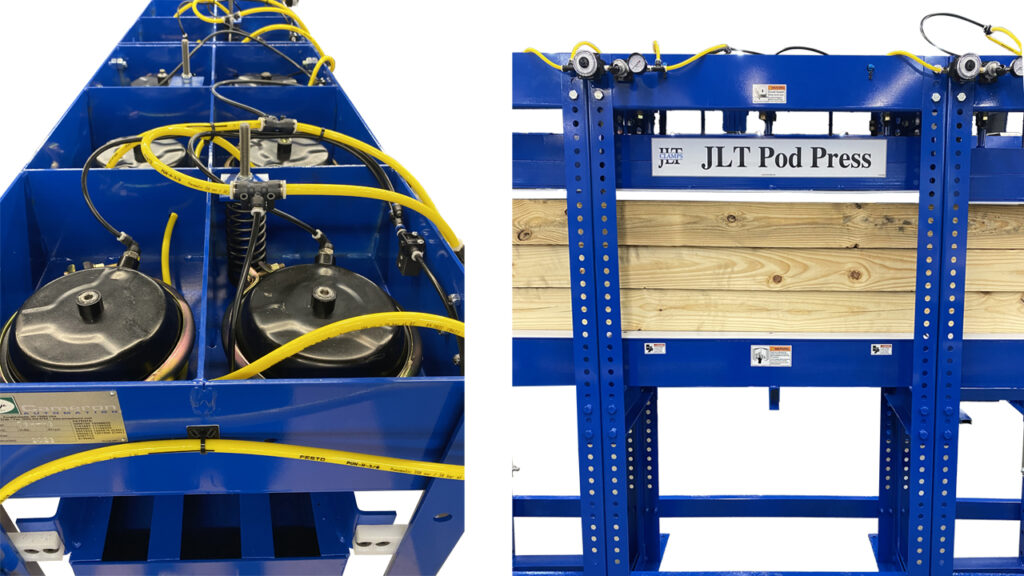

  • Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
    • Diaphragm Cylinders Provide Pod Press with 30 Tons of Clamping Pressure @ 120 PSI
  • Upper Steel Platen has a 2” Stroke when Air is activated
  • Air pressure and Alignment are Carefully Controlled by a Dial Regulator
    • Dial also Provides consistent clamping pressure at your desired setting
    • Each 42” Platen is Individually Operated
  • Upper and Lower Platens are made of 100% Steel Construction
  • Platens are Adjustable at 1 ” Increments up to a Maximum Opening of 40”
  • Both Platens Feature a Flat , Non Stick 1/2 “ Thick UHMW Base Plate
  • Engineered Stiled and Rails
  • Engineered Flooring and Stair Treads
  • Face Gluing
  • Headers
  • Kickers
